Technical Specifications

Walls:

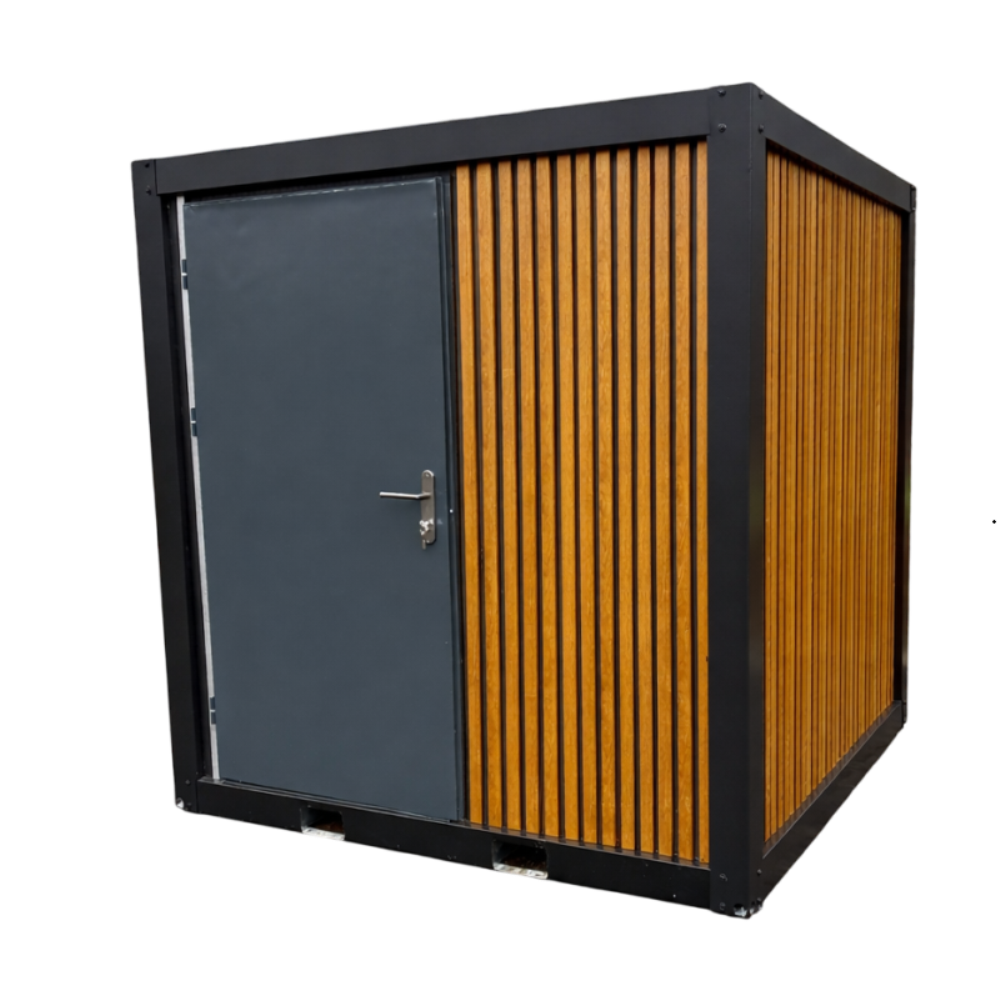

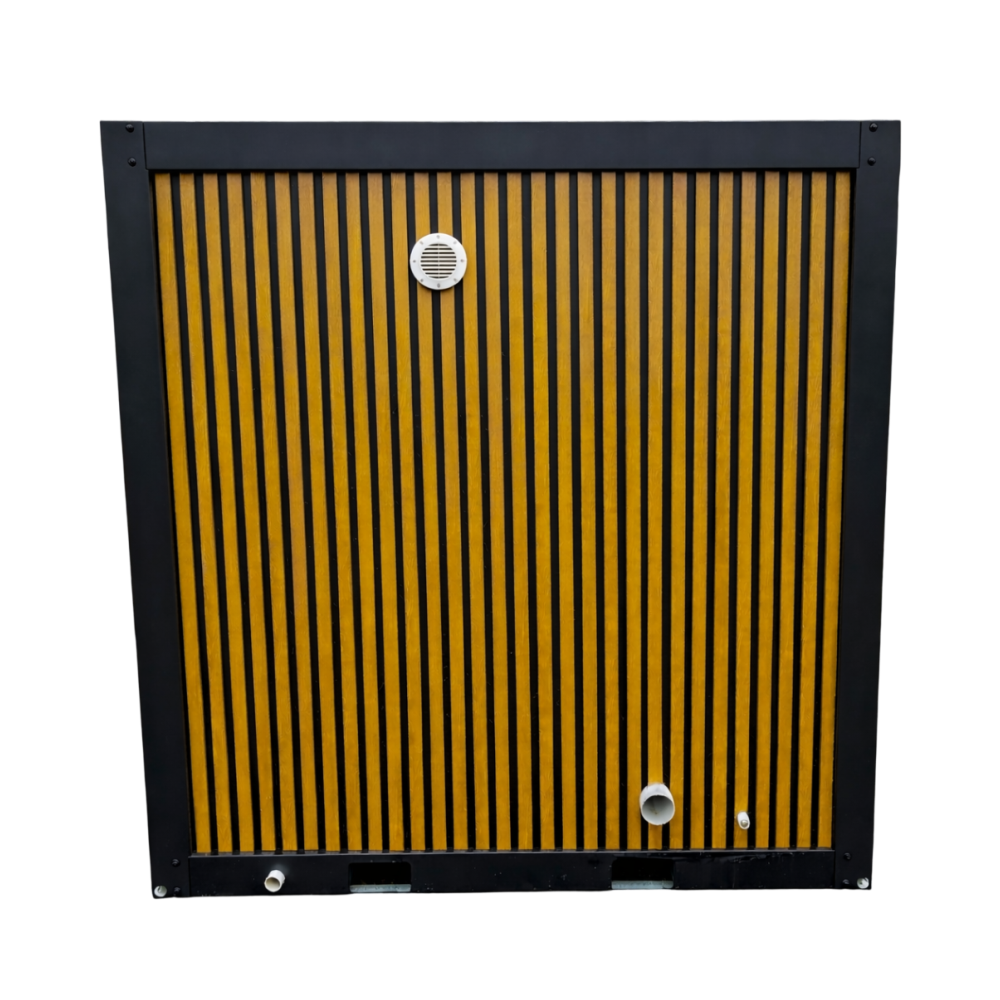

Wall panels consist of 40 mm thickness sandwich panels with EPS insulation (16 kg/m³ density) Both inner and outer surfaces are covered with 0.30 mm thick steel sheets All panels are delivered with protective nylon coating on the external surface PrimeCity: RAL 9002 white panels AntraCity: RAL 7016 anthracite grey panels SafranCity: RAL 9002 white panels + PVC wood cladding (lambris)

Chassis

Manufactured from custom-formed galvanized steel profiles Designed specifically according to unit dimensions Each unit includes integrated forklift pockets for easy handling

Roof

Constructed with a custom-shaped galvanized steel frame Insulated with 50 mm polyurethane (PU) panels (40 kg/m³ density) Rainwater is directed to integrated gutters along the roof edges Water is discharged through vertical corner steel elements to the ground This system prevents any water accumulation on the roof

Base:

Floor is 14 mm fully water-resistant fiber cement board mounted on steel chassis Top layer: 2 mm non-slip PVC flooring Designed for durability, hygiene, and easy cleaning

Door

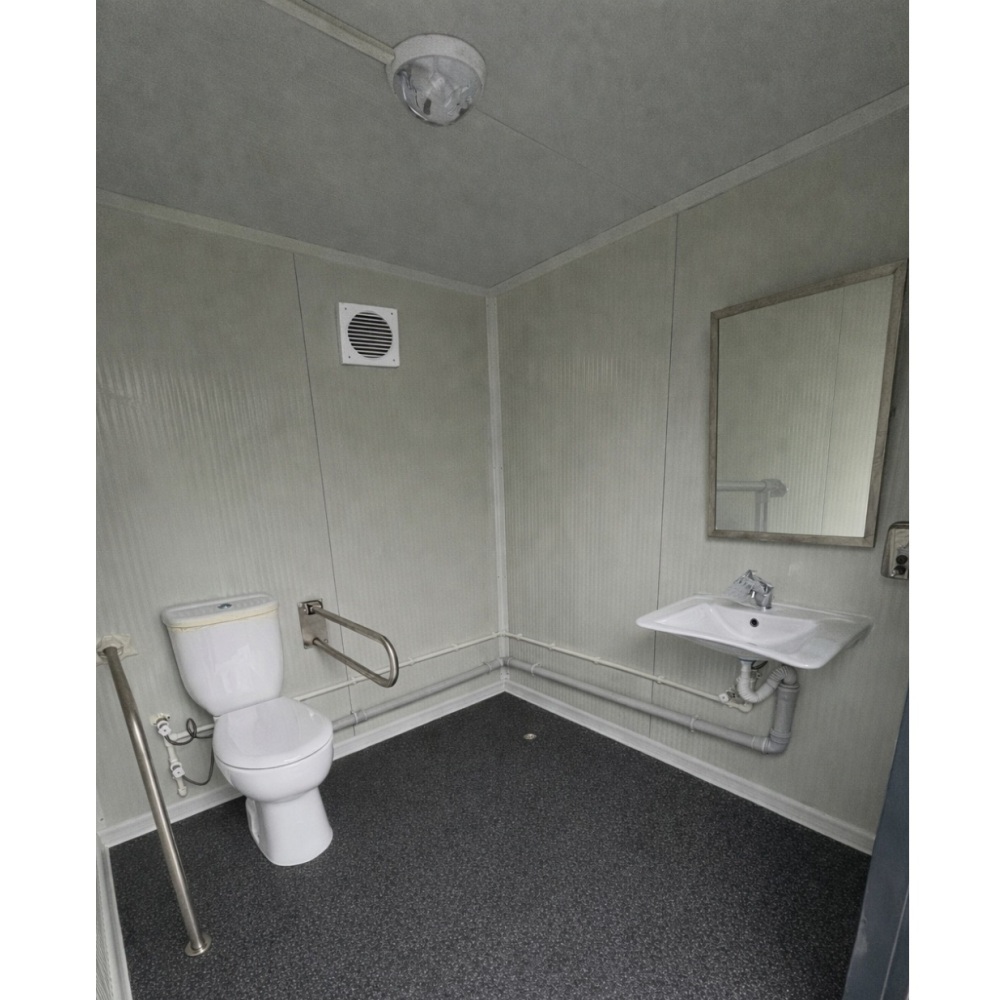

40 mm insulated steel door with EPS insulation (16 kg/m³ density) Lockable from both inside and outside Equipped with stainless steel door handle Suitable for intensive outdoor use Ventilation 150 mm diameter ventilation fan is standard in all units Provides continuous air circulation and moisture control Supports a hygienic and comfortable indoor environment

Plumbing & Drainage System

Clean water piping: high-quality PPRC system Wastewater system: PVC drainage pipes with proper slope All installations are pre-assembled and ready for external connection (plug & play) Boiler connections (water and electrical) are pre-prepared

Electrical Installation

Fully pre-installed electrical system RCD and 16A circuit breaker included as standard IP-protected switches, sockets, and lighting Ready for connection to external power supply The same electrical system used in units delivered to the Netherlands can be applied

Standards & Compliance

All materials are CE-certified and compliant with European standards Components are selected for durability, safety, and long-term use

Key Advantages

Ready-to-use plug & play system Designed for long-term outdoor durability Easy to clean and maintain Ideal for camping, caravan, and glamping sites Proven performance in European markets
